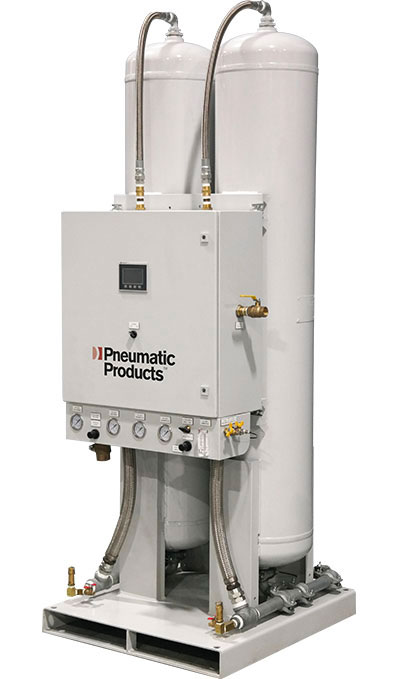

The NGPLS light duty nitrogen generator provides the best return on investment for the production of nitrogen for design flows ranging between 2.2 and 101 scfm. This product line is designed with ease of operation and installation in mind. With one touch start up, and package designs that fit through a standard 36” door, the NPGLS meets all of your nitrogen production needs. Operating at standard pressures from 100-120 PSIG and providing nitrogen purity of 95% to 99.999%, the NGPLS is the perfect solution for small to medium sized applications.
NGPLS Series Nitrogen Generators offer the most efficient small to medium solutions to nitrogen needs. Standard features include:
Easy and quick installation
Completely plug and play
Factory fine tuned to application
Password protected screens
Specifications
Model Number
Max Inlet Pressure (psig)
Inlet (in.)
Outlet (in.)
Length (in.)
Width (in.)
Height (in.)
Weight (lb.)
15NGPLS
150
3/4”
1/2”
35
26
80
702
21NGPLS
150
3/4”
1/2”
35
26
100
738
26NGPLS
150
3/4”
3/4”
35
26
80
870
32NGPLS
150
3/4”
3/4”
35
26
96
1000
41NGPLS
150
1”
3/4”
35
30
80
1060
47NGPLS
150
1”
3/4”
35
30
100
1194
59NGPLS
150
1.5”
1”
35
30
80
1292
68NGPLS
150
1.5”
1”
35
30
91
1443
76NGPLS
150
1.5”
1”
35
37
85
1500
88NGPLS
150
1.5”
1”
35
37
96
1630
100NGPL
150
1.5”
1”
35
39
90
1850
118NGPL
150
1.5”
1”
35
39
99
2025
Physical Characteristics Notes: *N2 pressure will typically be 25 psi lower than compressor outlet pressure (with reasonable pressure drop for filters included). In some cases, lower pressure drop may be possible. Please consult factory for details where relevant.
