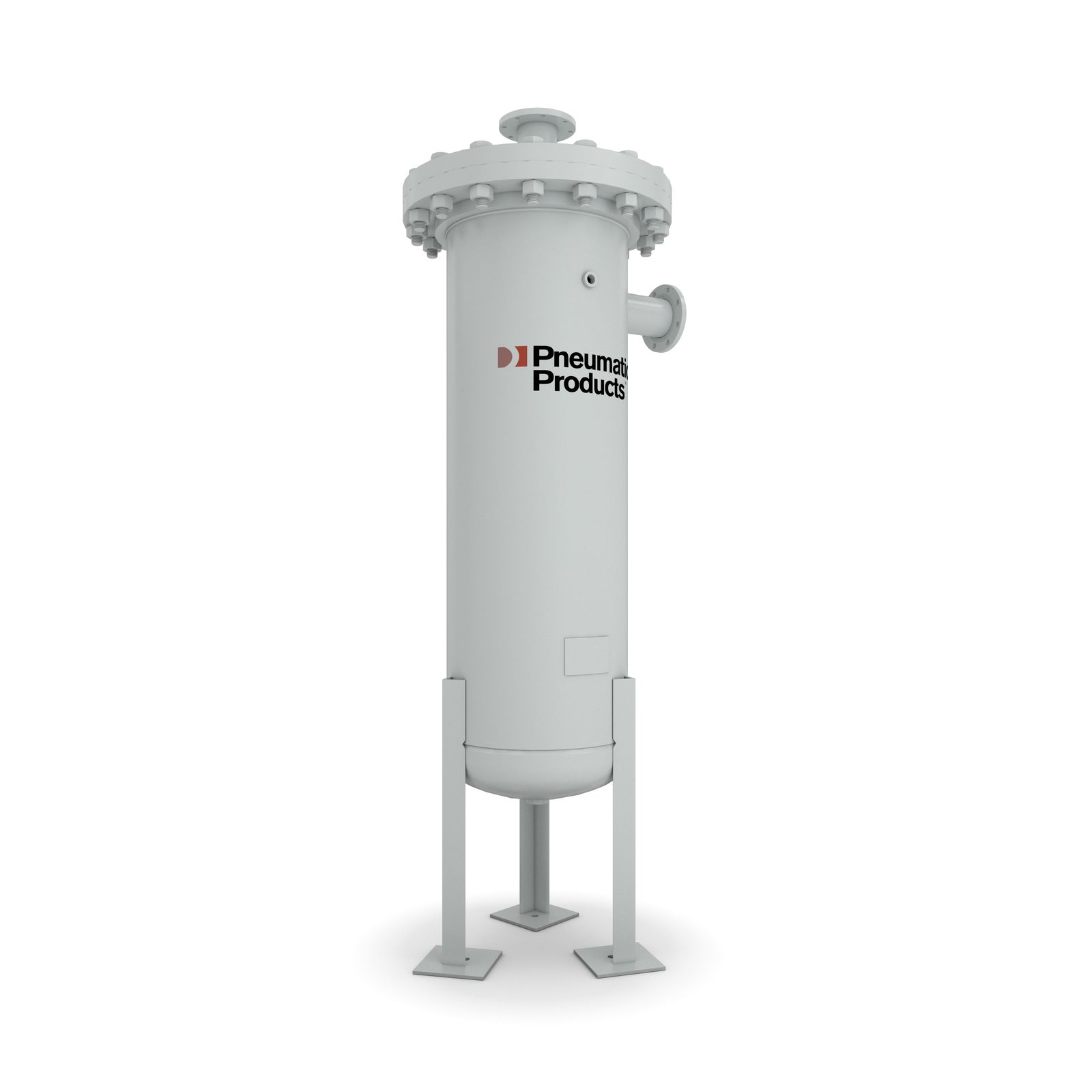

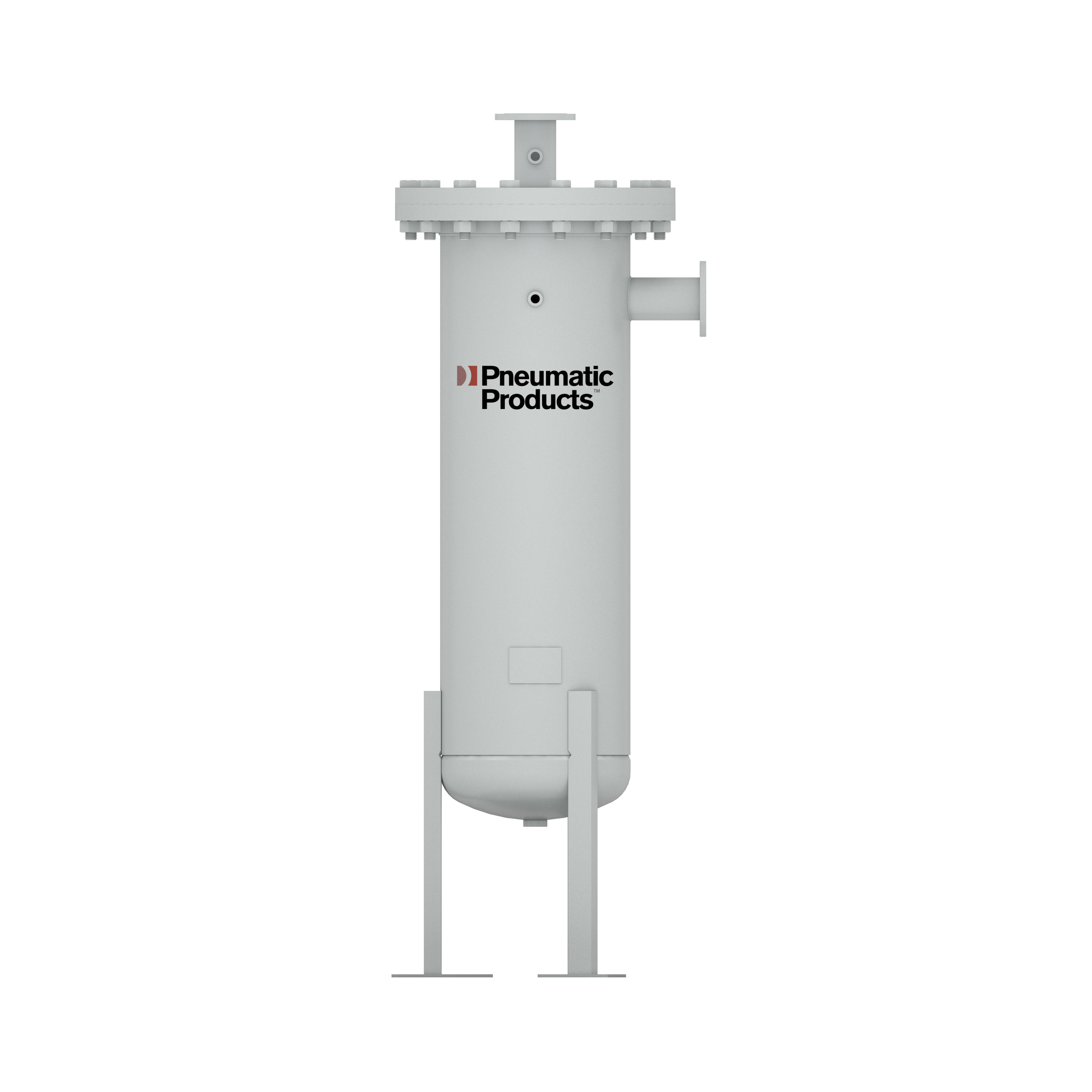

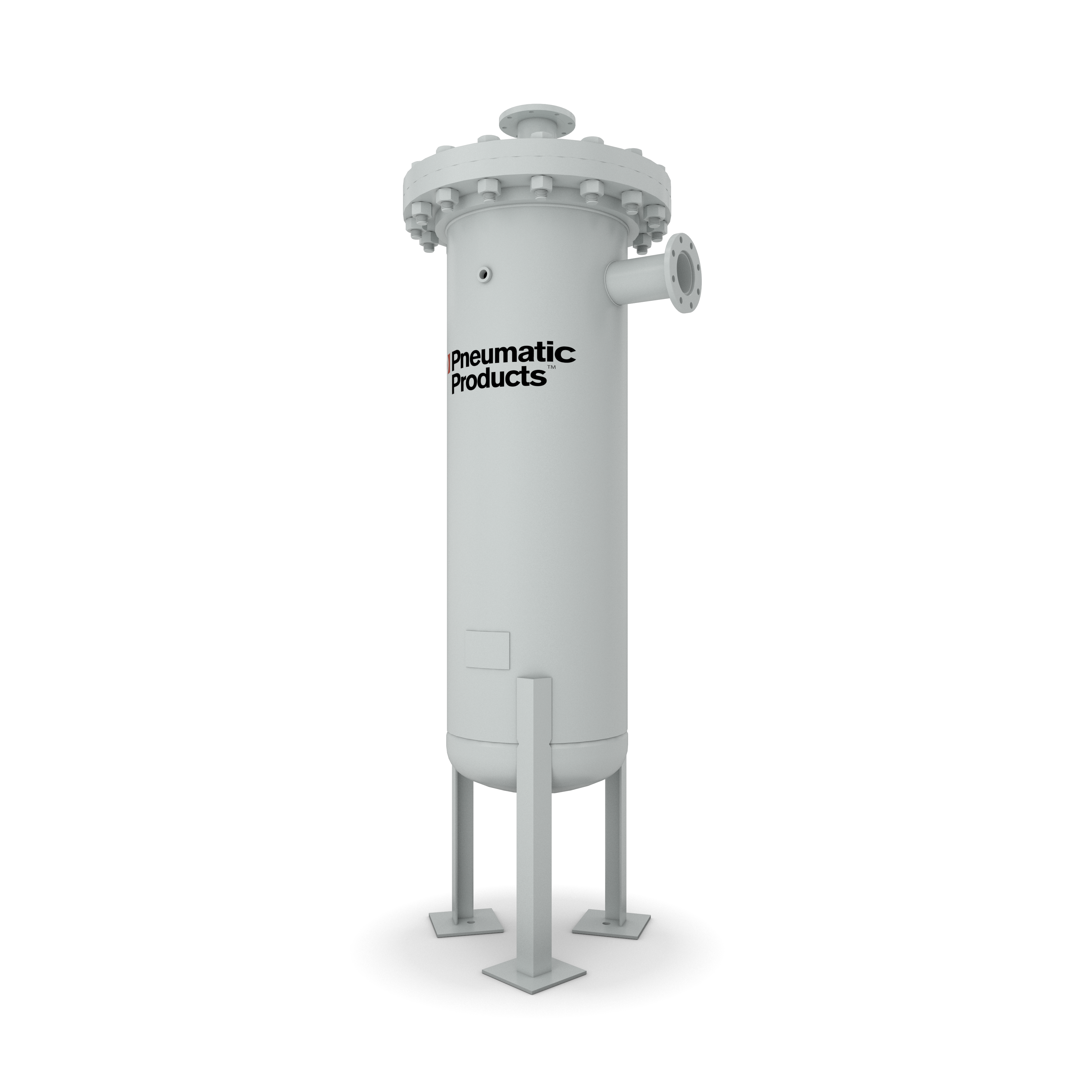

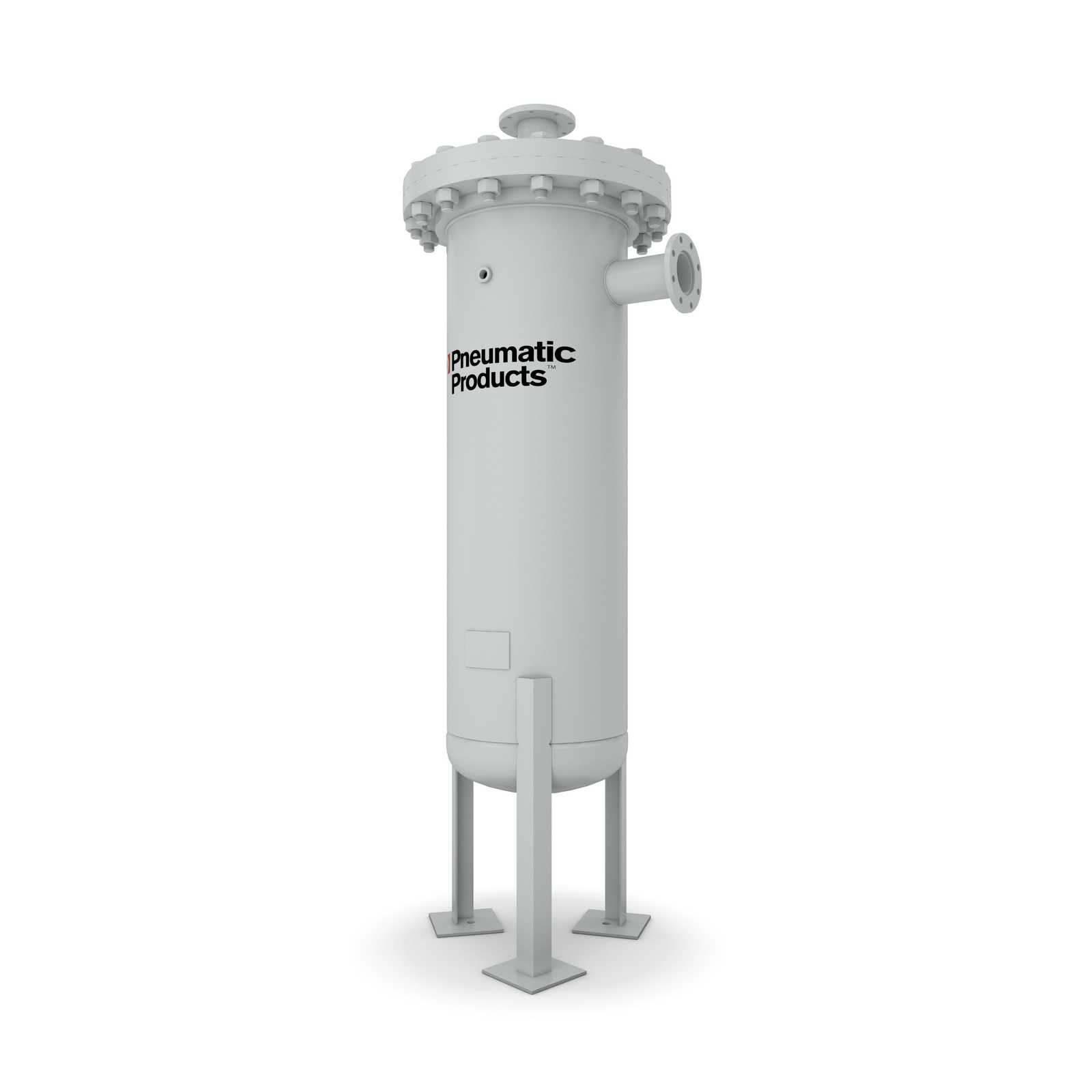

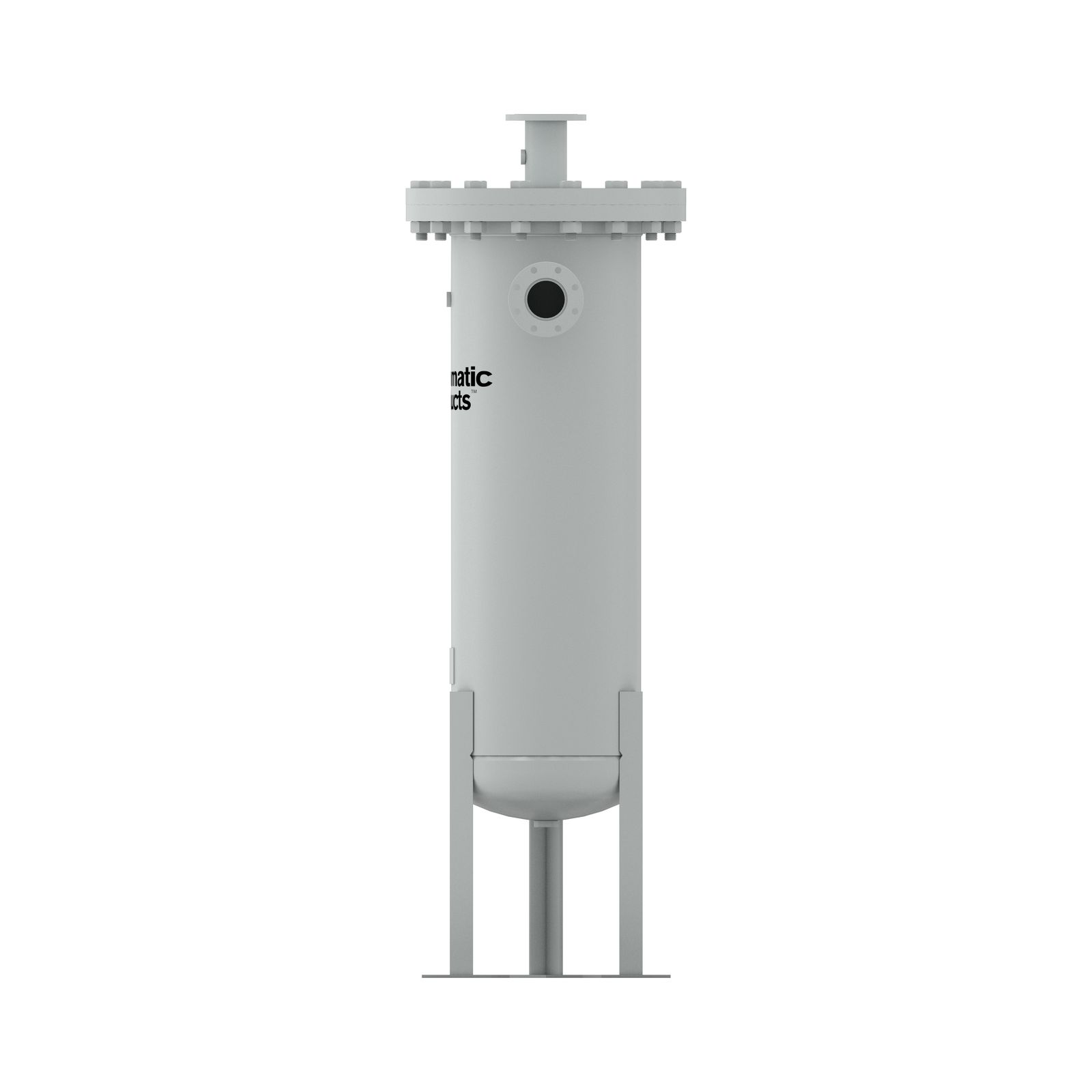

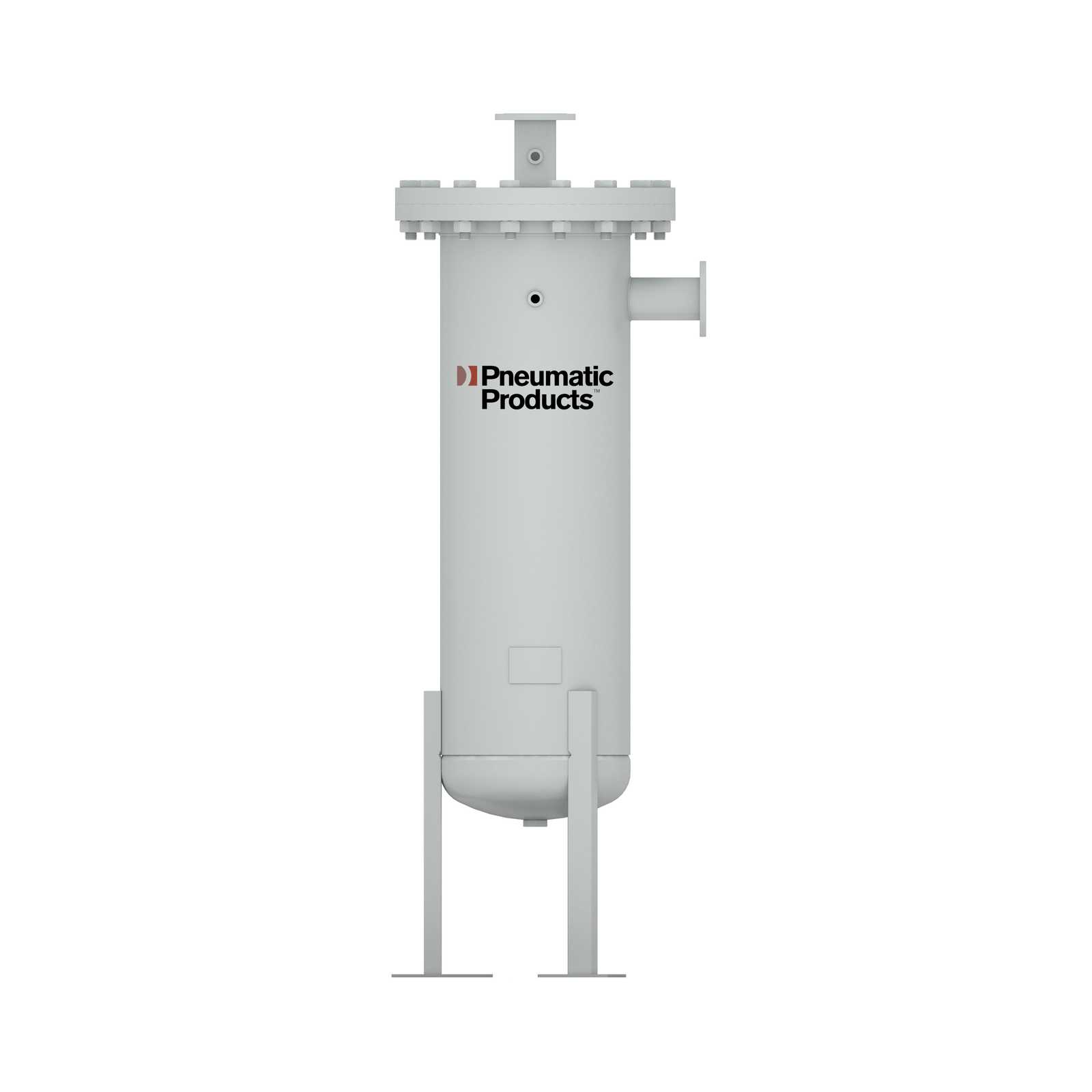

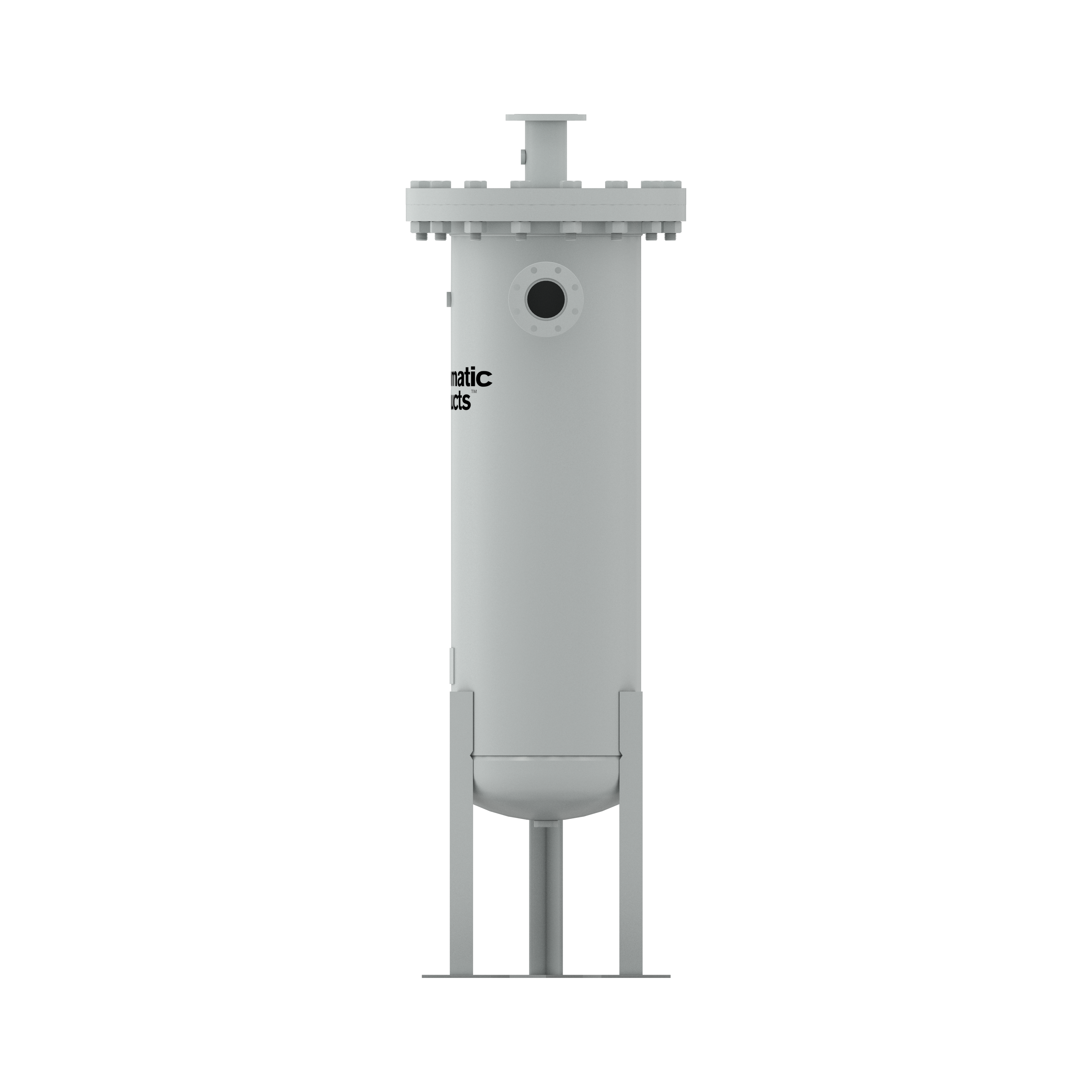

- Standard Differential Pressure Gauge mounted and piped
- Heavy duty ASME stamped pressure vessel
- Long life mist eliminator element
- Floor stand
- Dedicated vent port for demand type drains
(125-6,000 scfm) Air auditors always consider PME Series Mist Eliminators due to the 0.5 psig wetted pressure drop of the filter element. The unique housing and filter design is becoming the solution of choice for compressed air users who have decided to reduce the air compressor.
Model Number | Flow @ 100 psig (7 bar) | Replacement | Dimensions | Connections | Weight | ||||||
|
|
|
| Height | Width |
|
|
|
| ||
| scfm | mm3/h | Cartridge | in. | (mm) | in. | (mm) | Inlet | Outlet | lbs | (kg) |
PME-125 | 125 | 212.4 | M125-1 | 42 1/4" | 1073.2 | 21" | 533.4 | 2" NPT | 2" NPT | 455 | 208.4 |
PME-250 | 250 | 424.8 | M250-1 | 42 1/4" | 1073.2 | 21" | 533.4 | 2" NPT | 2" NPT | 455 | 208.4 |
PME-500 | 500 | 849.5 | M500-1 | 68 1/4" | 1733.6 | 21" | 533.4 | 3" NPT | 3" NPT | 520 | 235.9 |
PME-800 | 800 | 1359.2 | M800-1 | 68 1/4" | 1733.6 | 21" | 533.4 | 3" NPT | 3" NPT | 530 | 240.4 |
PME-1100 | 1100 | 1868.9 | M1100-1 | 72 5/16" | 1836.7 | 23 1/2" | 596.9 | 3" NPT | 3" NPT | 660 | 299.4 |
PME-1500 | 1500 | 2548.3 | M1500-1 | 72 7/16" | 1836.7 | 25" | 635 | 4" R.F. FLG | 4" R.F. FLG | 775 | 351.5 |
PME-1900 | 1900 | 3228.1 | M1900-1 | 75 3/4" | 1924.1 | 32" | 812.8 | 4" R.F. FLG | 4" R.F. FLG | 1225 | 555.7 |
PME-2400 | 2400 | 4077.6 | M2400-1 | 75 3/4" | 1924.1 | 32" | 812.8 | 4" R.F. FLG | 4" R.F. FLG | 1245 | 564.7 |
PME-3000 | 3000 | 5097.1 | M3000-1 | 88 3/4" | 2254.3 | 32" | 812.8 | 4" R.F. FLG | 4" R.F. FLG | 1385 | 628.2 |
PME-4500 | 4500 | 7645.6 | M4500-1 | 153" | 3886.2 | 32" | 812.8 | 6" R.F. FLG | 6" R.F. FLG | 1770 | 802.9 |
PME-6000 | 6000 | 10194.1 | M6000-1 | CF | CF | CF | CF | CF | CF | CF | CF |
PME-8000 | 8000 | 13592.1 | M8000-1 | CF | CF | CF | CF | CF | CF | CF | CF |
