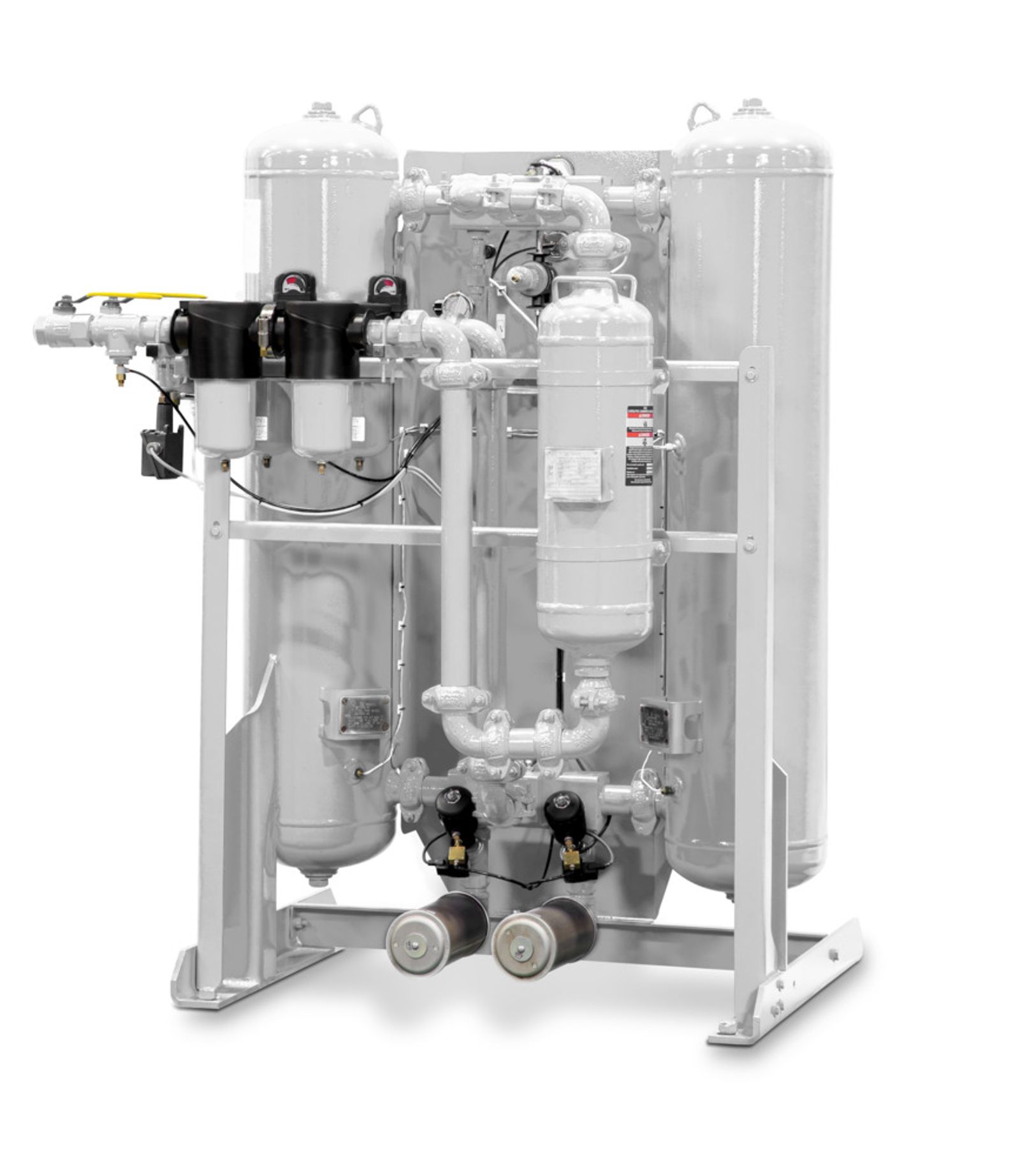

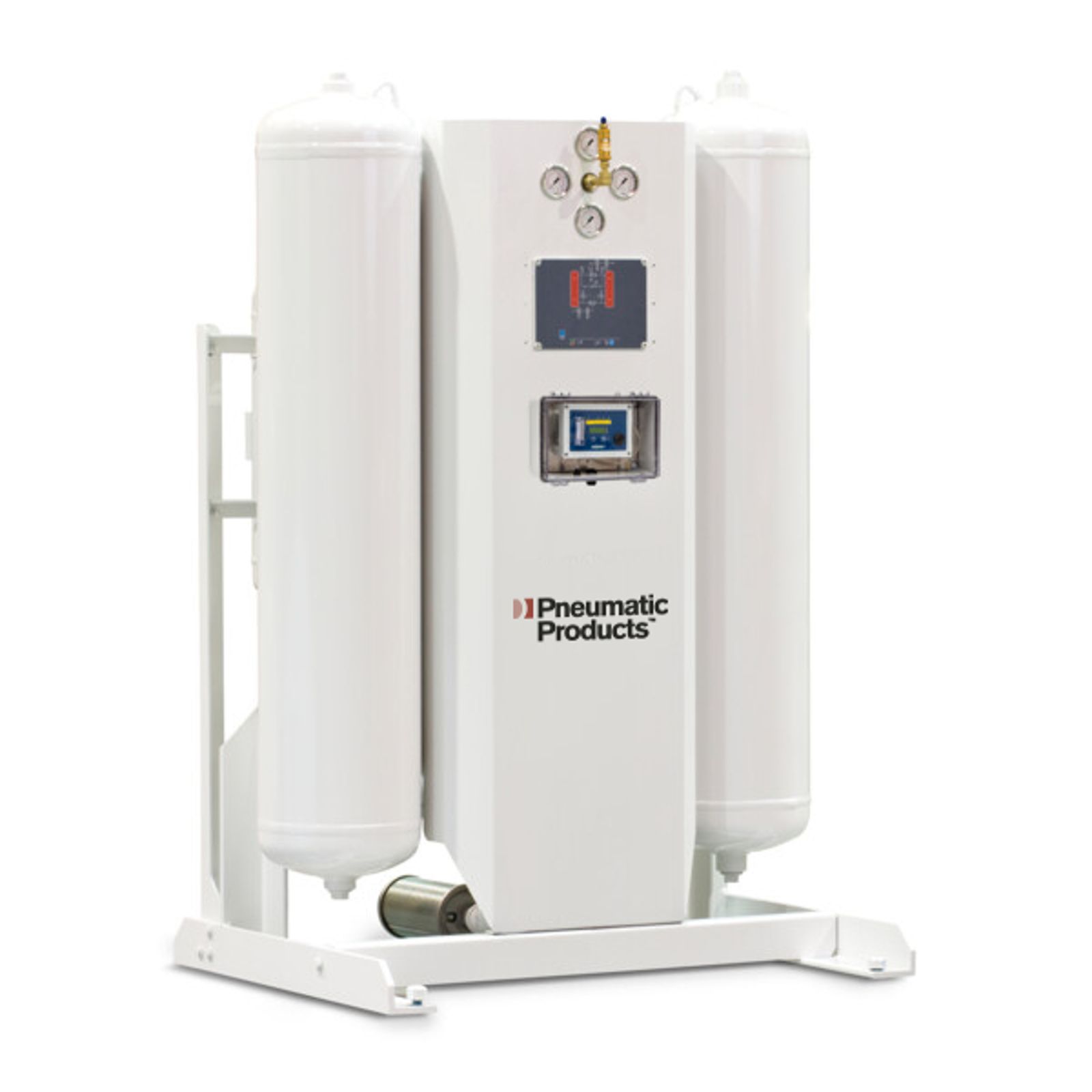

BAP Series - Breathing Air Purifiers

Pneumatic Products BAP desiccant dryer purifiers are designed to provide a continuous supply of clean, safe breathing air from your existing compressed air system.

Pneumatic Products BAP desiccant dryer purifiers are designed to provide a continuous supply of clean, safe breathing air from your existing compressed air system. Every purifier is a complete full-capacity purification system that performs effectively with lubricated or non-lubricated compressors.

Meets OSHA and CSA breathing air standards.

  • Protects workers from ambient and compressed air respiratory hazards.
  • Increases worker comfort and productivity.
  • Simple installation - air and electric only.
  • RS-232 monitoring of system operations and maintenance schedule.
  • This equipment is intended for industrial applications only. Consult factory for non-industrial applications.

MODEL

INLET FLOW1

OUTLET FLOW1

VOLTAGE

INLET/OUTLET
CONNECTIONS

SCFM

NM3/H

SCFM

NM3/H

V/PH/HZ

IN

BAP 15

18

31

15

26

85-264/1/
47-63 AC

11.5-28 V DC

1 NPT

BAP 25

30

51

25

42

1 NPT

BAP 35

42

71

35

59

1 NPT

BAP 50

60

102

50

85

1 NPT

BAP 75

90

153

75

127

1 NPT

BAP 95

114

194

95

161

1 NPT

BAP 135

162

275

135

229

1 NPT

BAP 205

246

418

205

348

1.5 NPT

BAP 305

366

622

305

518

2 NPT

BAP 375

450

765

375

637

2 NPT

BAP 490

590

1002

490

833

2 NPT

BAP 625

750

1274

625

1062

2 NPT

BAP 775

930

1580

775

1317

3 NPT

BAP 940

1130

1920

940

1597

3 NPT

1 Flow capacity rated at CAGI conditions: 100 psig (7.0 bar) and 100°F (38ºC) saturated inlet

MODEL

DIMENSIONS

WEIGHT

H

W

D

IN

MM

IN

MM

IN

MM

LBS

KG

BAP 15

49

1244

42

1067

35

889

440

200

BAP 25

49

1244

42

1067

35

889

450

204

BAP 35

49

1244

42

1067

35

889

455

206

BAP 50

64

1615

43

1097

38

962

560

254

BAP 75

79

2006

43

1097

35

889

700

318

BAP 95

56

1443

50

1270

45

1137

820

372

BAP 135

56

1443

53

1356

43

1092

820

372

BAP 205

75

1905

62

1575

45

1143

1190

540

BAP 305

65

1651

66

1674

52

1327

1405

637

BAP 375

74

1871

67

1702

52

1330

1560

708

BAP 490

103

2616

55

1397

69

1753

1650

748

BAP 625

107

2718

62

1575

75

1905

2800

1270
